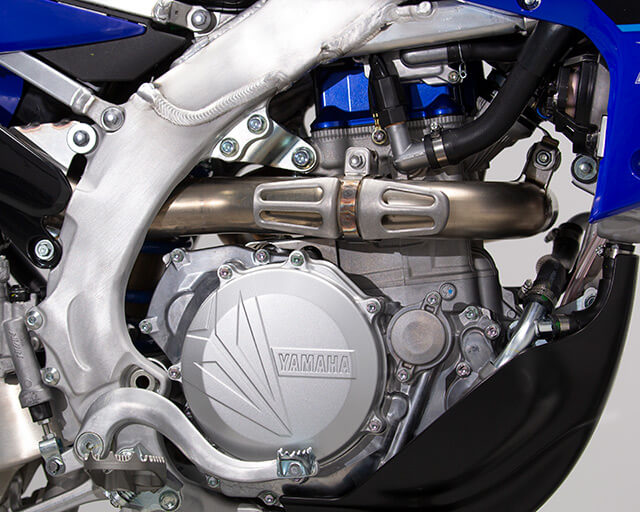

MORE POWERFUL AND COMPACT NEW 450CC ENGINE
Already renowned for its enormous power output, the WR450F engine has been thoroughly redesigned to deliver stronger and more controllable performance. The engine is essentially the new generation YZ450F tuned with enduro settings - which means its significantly more compact and lighter than the previous generation engine. The revised configuration enhances the bike's mass centralised design to make it one of the easiest-handling large capacity enduro machines. Featuring increased compression ratio – up from 12.8:1 to 13:1 – the reverse cylinder head also runs a durable forged piston and aggressive cam profiles. New intake/exhaust systems and ECU run WRF specific settings to deliver the best balance of race-winning performance together with ultimate controllability for tight trails.

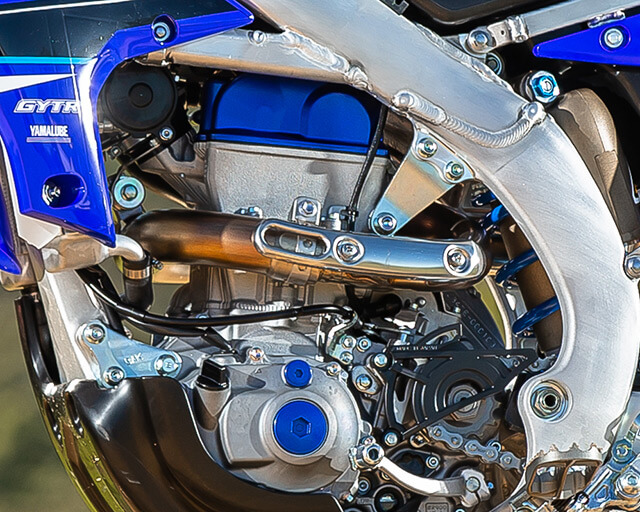

NEW LIGHTER CYLINDER HEAD
The new cylinder head weighs 310g less than before and is significantly more compact. Because this innovative design is positioned close to the bike's mid-section it helps to achieve an idealised mass centralisation, and this contributes enormously towards the WR450F's dynamic handling characteristics. The intake/exhaust valve angles and intake port design are changed and a new piston with a small recess is specified to create a more concave combustion chamber for increased power. This new high-efficiency head with its long and straight inlet, produces a fine balance of power with exceptional controllability.

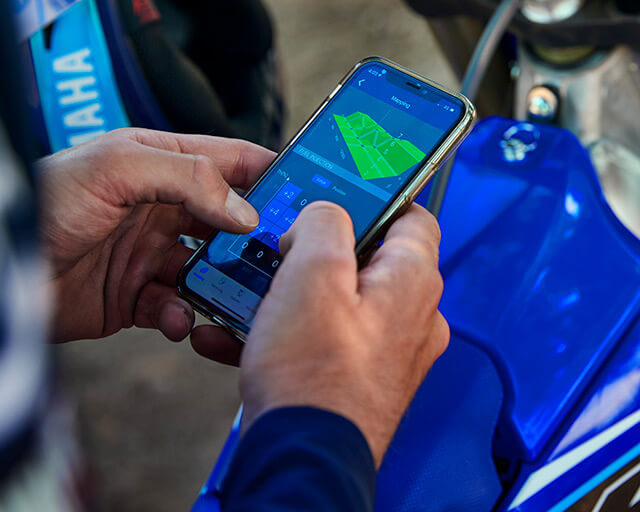

In 2019 the WR450F became the first enduro bike with inbuilt connectivity featuring remote wireless tuning using a smartphone. Now the 2022 model continues to lead the field in digital technology. By downloading the free Power Tuner app for IOS or Android devices, WR450F riders can easily adjust the fuel/air mix and ignition timing to set the bike up for different riding conditions. This feature makes the WR450F the most adaptable enduro machine – and one that can be tuned instantly on the trail, allowing riders to make the most of a wide range of surfaces and weather conditions. In addition to its engine re-mapping function, the Power Tuner app can also record information and monitor a range of data, including system diagnosis, engine run time and more, making it an indispensable part of every rider's toolkit.

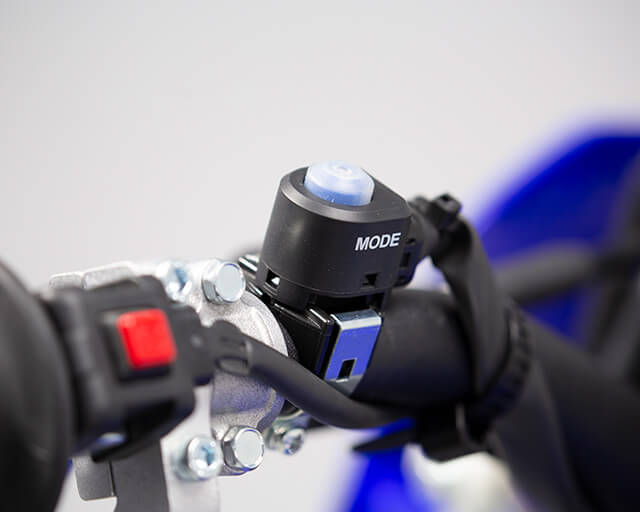

HANDLEBAR-MOUNTED MAP SWITCH
The WR450F features a handlebar-mounted mapping switch (blue button) that enables the rider to select one of two power maps on the fly. This simple adjustment allows instant engine delivery changes to suit variable terrain or weather conditions. For example, from an aggressive map for fast dry conditions to a high traction map for slippery hillclimbs.

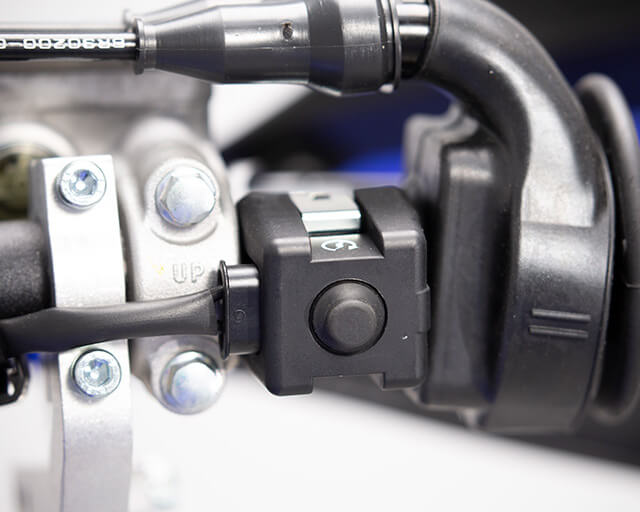

COMPACT ELECTRIC STARTER
The new 450 engine is equipped with a compact and lightweight electric starter that gives push-button convenience for hassle-free starts – especially useful on the side of a hill.
ADVANCED FUEL INJECTION SYSTEM
The compact new engine is equipped with a highly advanced Mikuni fuel injection system that features a light and ultra-compact 44mm throttle body. Delivering the fuel/air mix via a long and straight forward facing inlet, this advanced fuel injection system benefits from a high pressure electric pump that ensures optimum atomisation for excellent running performance in a wide range of riding conditions.
HIGH EFFICIENCY ANGLED RADIATORS

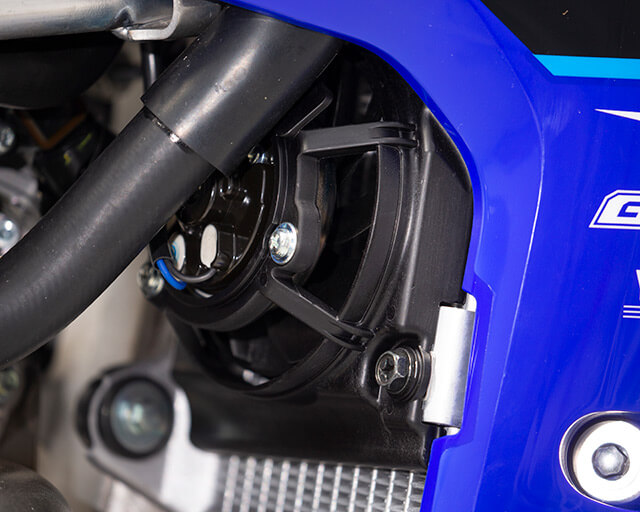

To ensure that the new more powerful engine runs efficiently in all conditions, Yamaha's engineers have developed radiators that are angled to directly face the incoming air. By maintaining a consistent airflow, this angled radiator layout delivers effective engine cooling for winning performance. A thermo fan cuts in to keep the fluid cool when the going gets tough.
TOUGHER WIDE RATIO 5-SPEED TRANSMISSION
The WR450F's robust 5-speed transmission is built to handle even the most aggressive left foot. The specially-developed gears feature a large surface area that spread the load, and third and fourth have received a surface treatment to increase durability. In addition, the shift drum and selectors now give improved feel and a shorter stroke when shifting gear. Ratios are ideal for enduro riding with lower gearing from first to third gear and taller-geared fifth compared to YZ450F.

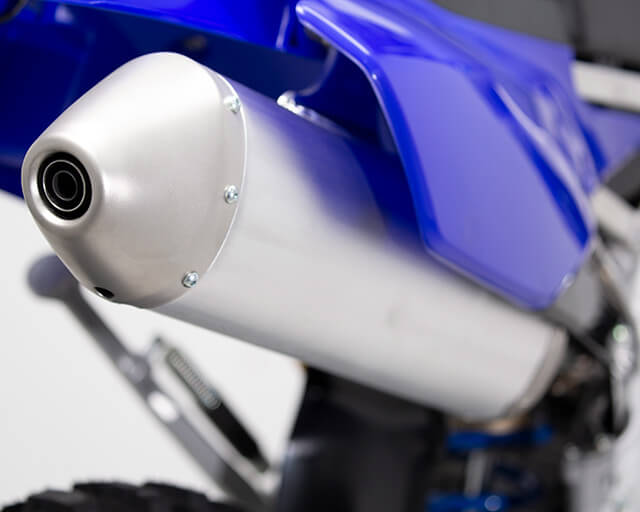

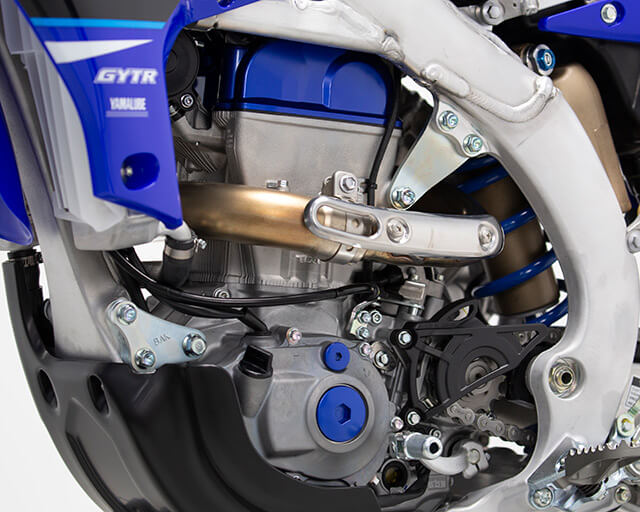

MASS-CENTRALISED WRAPAROUND EXHAUST
A key feature of the WR450F is its mass centralised design, in which major components are located as close to the bike's centre of gravity as possible. One example of this is the wraparound exhaust that snakes around the cylinder - this design also enables the fitment of a muffler that is mounted close to the bike's centre. The WR450F runs a YZ450F exhaust with WRF specific muffler to achieve the goal of increased power with control. Combined with the rearward-slanted cylinder, the exhaust centralises mass and contributes significantly towards lightweight and dynamic handling performance.
